Reducing demo data

Follow this procedure to quickly reduce XSHOOTER demo data. We assume that the EDPS Graphic User Interface, the XSHOOTER pipeline and the demo data are installed in your system. For general instructions on how to install EDPS and the pipeline, please visit https://www.eso.org/sci/software/pipe_aem_main.html.

1. Setting the workflow

a. After installation and while still in the installation virtual environment (if not, activate it again), start the EDPS dashboard by typing:

	edps-gui

The EDPS dashboard will start in a browser window.

dashboard

b. Optionally, before starting EDPS, one can specify new settings by pressing Help –> Settings (see here)

help_settings

c. On the browser window with the EDPS dashboard, press the button Start EDPS.

start_edps

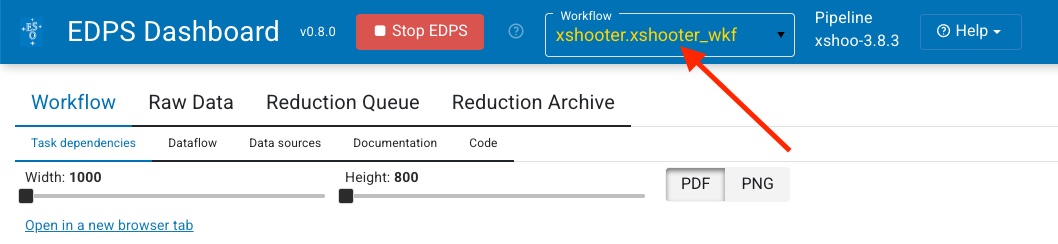

c. Choose the XSHOOTER pipeline from the list in the workflows field. The workflows offered in this selector depend on the installed pipelines.

The graphic workflow representation will appear as in Fig. 6.

wkf

Fig. 6 The EDPS Dashboard (Graphic User Interface) with the XSHOOTER workflow loaded.

2. Selecting the input data

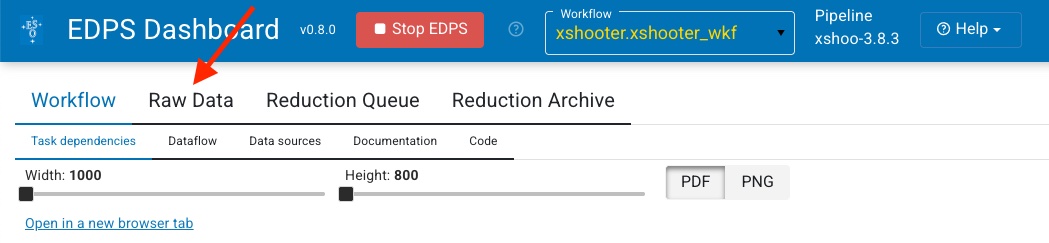

a. Press Raw Data.

raw_data

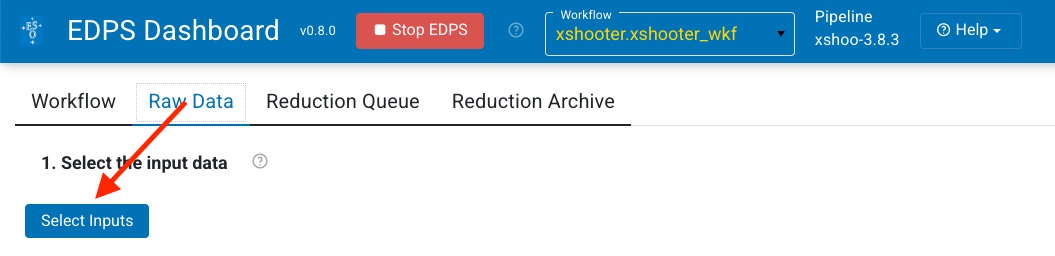

b. Press Select Inputs. A selection window will appear that allows to select data that are stored on a local disk.

select_input

c. (Optional). Select the reduction target, configure the workflow parameter and specify the association preferences. Thise steps are optional. For more information see here.

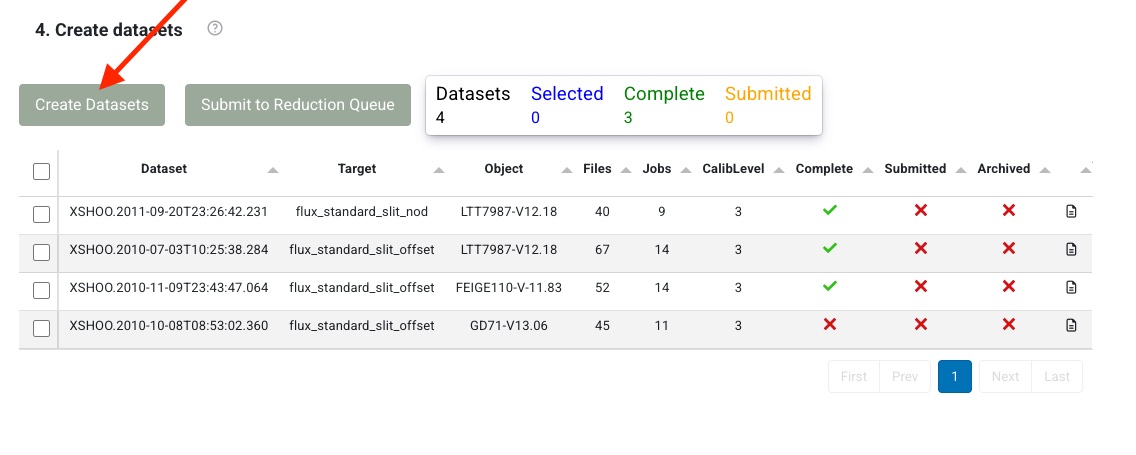

d. Press Create Datasets. A list of datasets appears, one line for each set of science data.

create_datasets

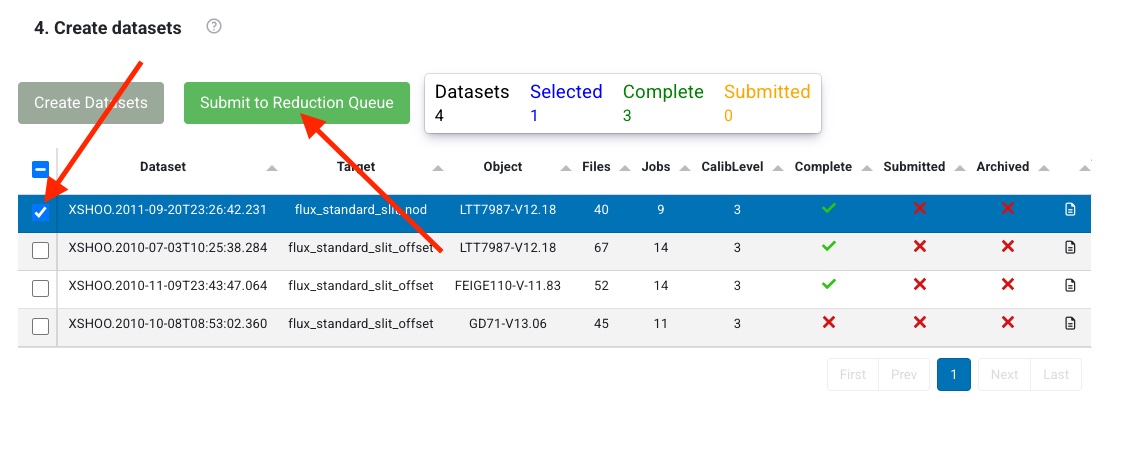

e. Choose the datasets that should be processed

send

and send them to the data reduction queue by pressing Submit to Reduction Queue. Note that this action does not start the reduction automatically.

3. Start the reduction

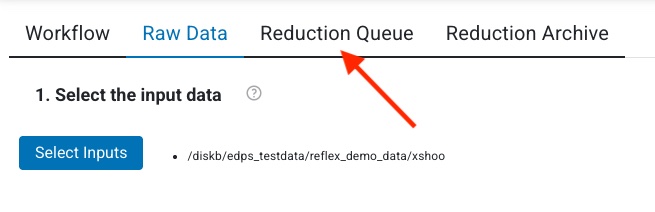

a. Press Reduction Queue.

processing_queue

b. (Optional). Configure the workflow and recipe parameters by pressing the wheel button to open the configuration editor.

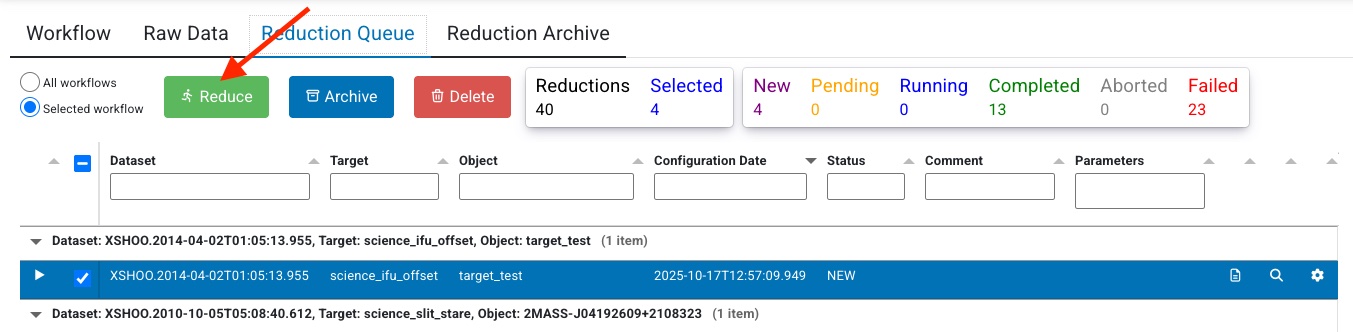

c. Press the Reduce button. The selected data will now be processed with the default parameters.

reduce

Congratulations! You reduced your first data with the EDPS dashboard! All the reduced data are saved in the EDPS_data directory specified when executing edps-gui for the first time.

Go to top

4. Final products

By default, EDPS saves all the recipe products for all the executions in the directory specified at the first execution (default: $HOME/EDPS_data). However, it is possible to save only the final products into a desired location. This can be achieved by exporting archived data reduction: press the Export button in the Archived Data tab (see here).

To archive a data reduction, press the button Archive in the Reduction Queue tab (see here)

The exported products are organized by TARGET_NAME (as read from the header), DATASET (named as the first scientific exposure of the dataset), and TIMESTAMP (time of start of reduction)

The final products saved in the specified directory are:

  • The 1D spectrum, telluric corrected, obtained from the combination of individual exposures. Its name format is: SPECTRUM_COMBINED_<target_name>, where target name is read from the header.

  • The individual 1D spectra prior to combination (either telluric corrected or not). They are in a subdirectory of the combined spectrum they refer to their name formats are SPECTRUM_<arm>_<arcfile> or SPECTRUM_TELLCORR_<arm>_<arcfile> if telluric corrected. The values of arm (UVB, VIS, NIR) and arcfile (the file name of the raw science exposure) are read from the file header.

  • The datacubes obtained from individual exposures for IFU observations. Its name format is: DATACUBE_<arm>_<arcfile>.

This applies to all slit modes (stare, offset, and nod) and ifu mode.

Other useful products, such as 2D spectra prior to the extraction, can be found in the EDPS_data directory, where all intermediate products are saved.

5. Quality plots

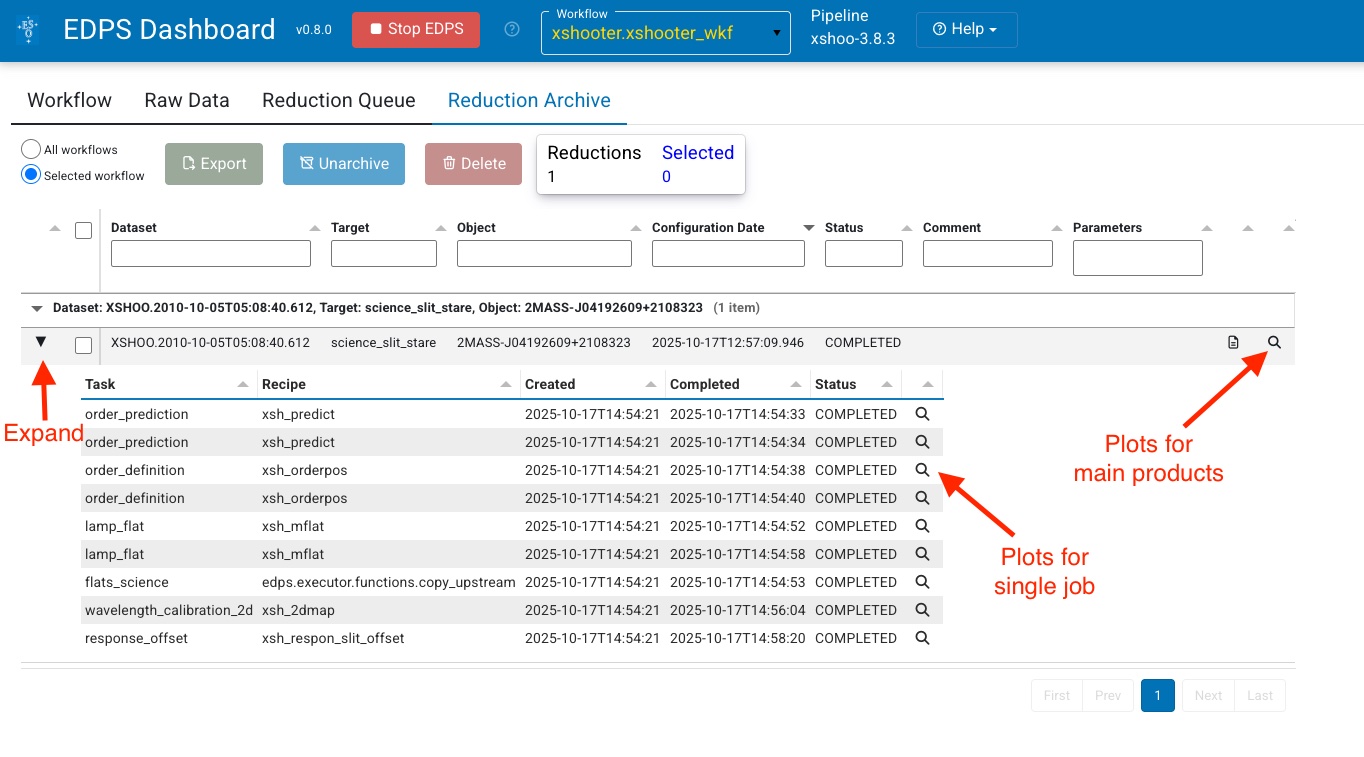

Almost all processing tasks can display the input raw frames and the products in the so called “quality plots”, which can be inspected from the Reduction Queue window. Those associated for the main product can be inspected by pressing the magnifying glass symbol at the right side of each dataset. To inspect those associated to each individual job (if created),

  • Expand the desired dataset by pressing the black arrow on its left. The list of jobs will appear with the associated status (COMPLETED, RUNNING, PENDING)

  • Press the magnifying glass symbol at the right side of the job you want to inspect. Only plots for completed jobs can be inspected.

    reports

Go to top

Go to XSHOOTER EDPS tutorial index
